Apache is the most widely used web server in the world, powering more than 60% of all active websites on ther internet. It is an open-source software available for free which anybody can use to serve static or dynamic sites to userts. Ubuntu is an Operating System based on Linux and is widely used worldwide by Developers, Students, Researchers and Engineers worldwide. It is preferred for its price (free), flexibilty and durability. This guide will go through how you can easily configure and install an SSL Certificate on an Apache WebServer with the Ubuntu OS CLI.



Pre-requisites:-

1: The server should have Apache installed.

How to Install Apache on your server:

a. Update your server -

sudo apt update

b: Install Apache -

sudo apt install apache2

c: Check the Installation of Apache WebServer

Either, run the command -

systemctl status apache2

If you get an ACTIVE in your output, you're good to go.

OR

Head over to yourdomain.com and check whether you're able top see the default Apache Page which should look like this -

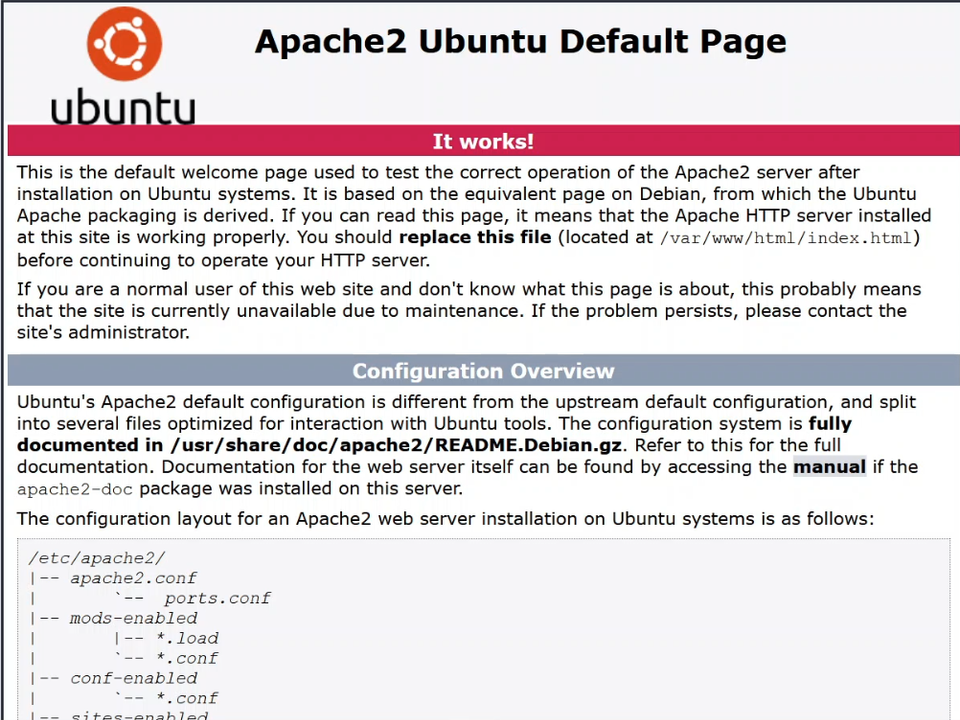

Apache Default Page




Step 1. Generating a CSR and Private Key with OpenSSL

You will first have to generate a private key and a CSR (Certificate Signing Request) using the default OpenSSL Library provided by Apache.
We are first going to make a directory to store of all our certificate files, including our private key and CSR.

1: To make a directory, type in the following command:

>sudo /etc/encryption

This will create a sub-directory under /etc called encryption. You can replace encryption with the name of your choice.

2: Type in the following command to generate a private key and a CSR -

sudo openssl req -new -newkey rsa:2048 -nodes -keyout /etc/encryption/server.key -out /etc/encryption/server.csr

This will create a private key and a CSR with the name of server.key and server.csr respectively; in the encryption directory.

You will then get a prompt asking you to input the following details regarding your CSR:-

Country Name (2 letter code) [AU]: Type in the 2 letter abbreviation for your country.
State or Province Name (full name) [Some-State]: Full name of the state
Organization Name (eg, company) [Internet Widgits Pty Ltd]:Locality Name (eg, city) []: Complete name of the city, no abbreviations
Organization Name (eg, company) [Internet Widgits Pty Ltd]: If you are a business; Enter your legal entity name. If you're not a business, any value entered will not be used in your certificate.
Organizational Unit Name (eg, section) []: If you are a business; Write the appropriate division of your company. It is best to use something generic such as "IT".
Common Name (e.g. server FQDN or YOUR name) []: Enter your domain name<
Email Address []: Enter your email address

After you hit Enter, your Private Key and CSR should be generated successfully in the directory named encryption.

3: To view your CSR, type in the following command:

cat /etc/encryption/server.csr

You can now copy your CSR with CTRL+C and move on to configuring your SSL Certificate.



Step 2. Order and Configure the SSL Certificate

Now we need to order an SSL Certificate. If you visit our SSL Certificates List page, you will have a selection of Certificates you can order. If you have a simple website wanting to secure the one domain, you will be fine to use a Comodo PositiveSSL. If you are a business website you may want to look at using a Business SSL, we recommend a GeoTrust SSL such as the True Business SSL.

If you require any assistance with selecting an SSL Certificate, please feel free to contact our sales team and they will be happy to assist.

2: Once you have completed the SSL Certificate Purchase you can begin the configuration process. This can be started by going into your SSLTrust account and managing your recent purchase.

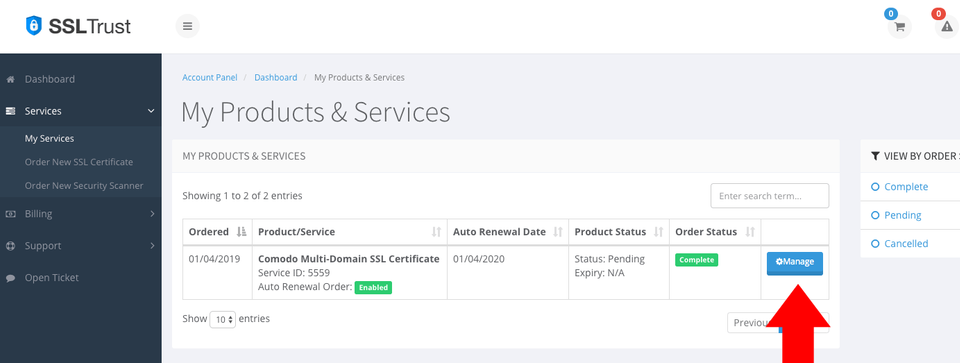

manage ssl

You then will need to click the Submit Configuration button to begin the configuration process.

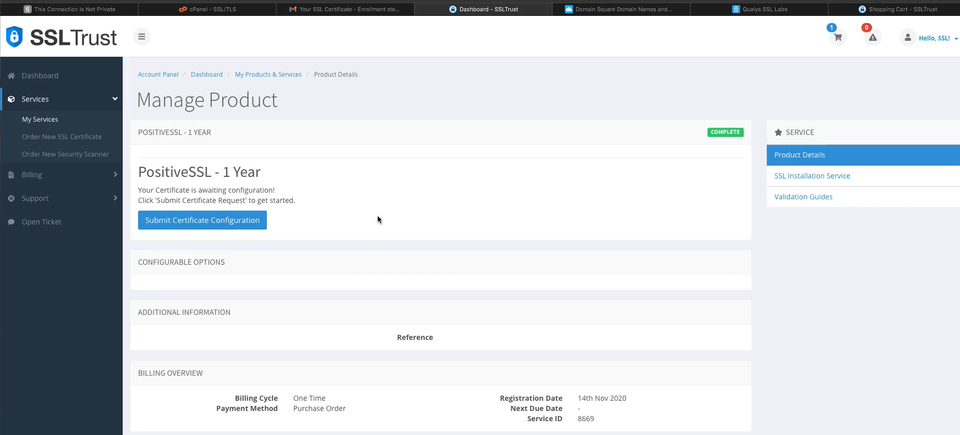

submit ssl configuration

3: You now need to paste in the CSR you generated using the OpenSSL library in the Ubuntu CLI. This includes the lines:

  -----BEGIN CERTIFICATE REQUEST----
  -----END CERTIFICATE REQUEST-----

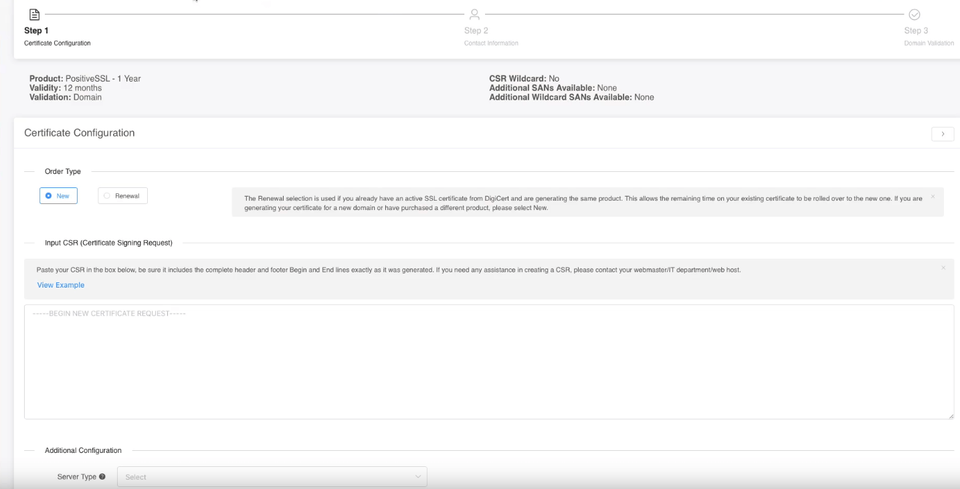

configure SSL

Select Apache for your Web Server Type.

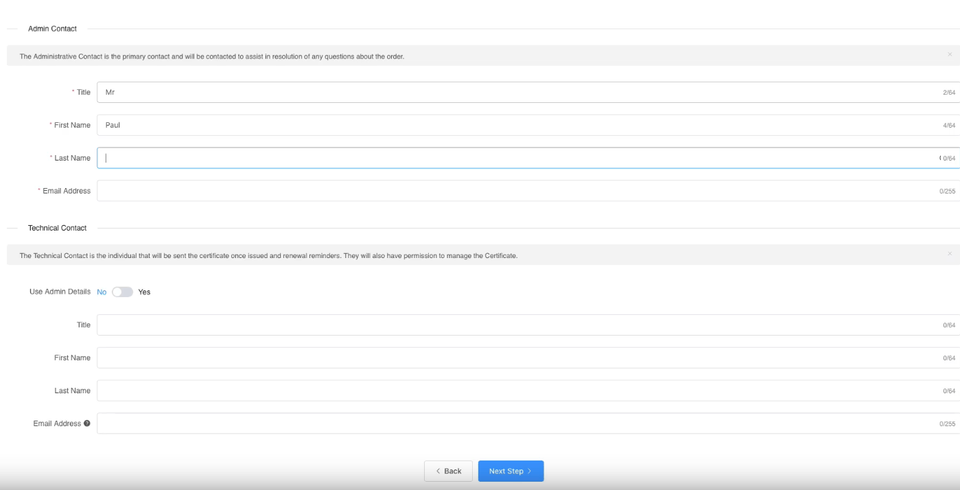

ssl admin details

You will need to also enter the Site Administrator Contact Information.

This information is to be of the individual who is responsible to approve and SSL Certificate. If it is a business SSL, it needs to be a contact under the business.

The Technical Contact Information is the details of the individual responsible for the installation and management of the Certificate.
If you have ordered a business SSL, you will also be required to enter your business details. These should be the correct address and phone number and legal entity name. They will be required to be validated by the Certificate Authority, any mistakes will cause delays. More information on Business Validation can be found here.

4: Click Continue to go to the next Step. Here you need to select the Authentication Method to validate your domain name. This is required to prove you own the domain name and have permission to issue an SSL Certificate for the domain.

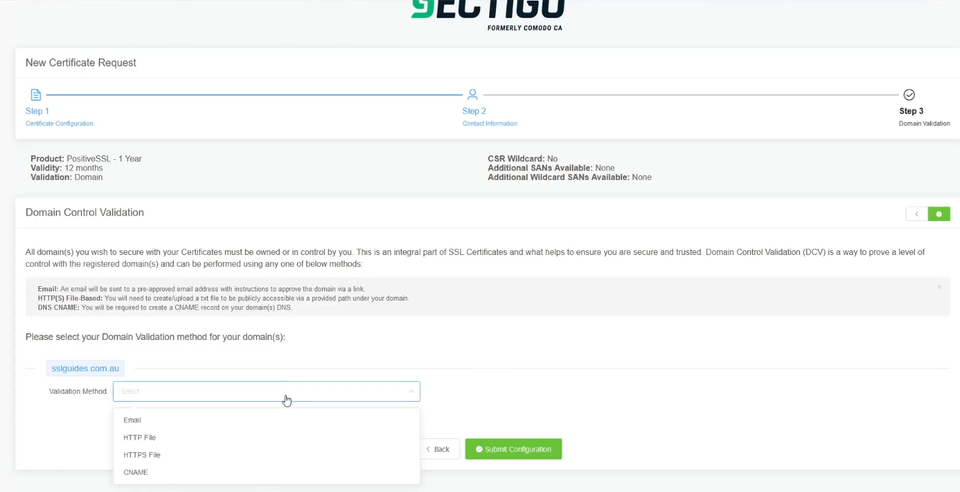

select domain validation method

Select the method that will be the easiest for you to use; File-Based Authentication ( HTTP / HTTPS ), CNAME Based Authentication ( DNS ) or Certificate Approver Email.

If you have access to one of the listed emails, this can be the quickest method

Click Continue/Submit to finish the Configuration process.

After you complete the domain validation via your selected method, your SSL will be issued. If you ordered a Business SSL, you will need to wait for the Certificate Authority to complete the Business address and phone validation. If the validation has not progressed, or you have not received your Certificate after some time, please contact our support team so we can check on its status.

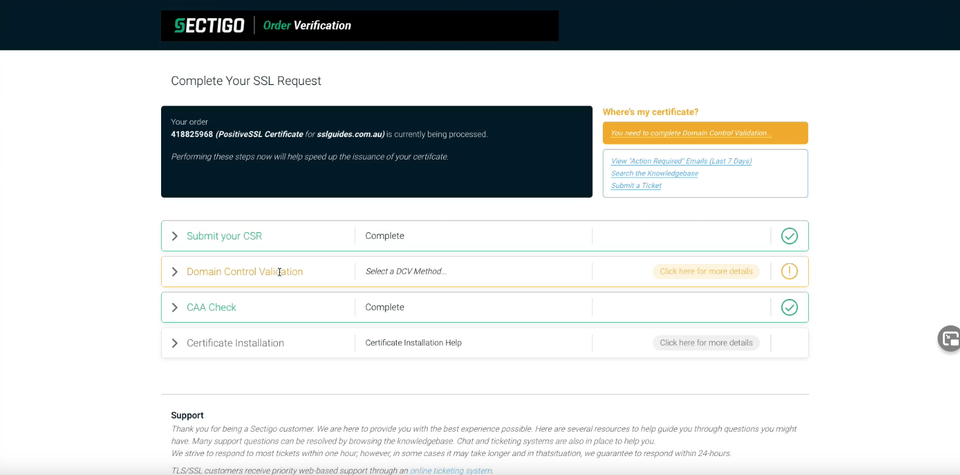

sectigo validation manager



Step 3. Upload the SSL Certificate files to your server

When your SSL Certificate has been issued, you will be emailed the Certificate Directly from the Certificate Authority. You can also download it from your SSLTrust Portal. Downloading it from the SSLTrust Portal is a good option as we format the certificate in an easy to use way.

Again; View your certificate management page within SSLTrust

manage ssl

1: Click on the Manage button and collect/download your certificate

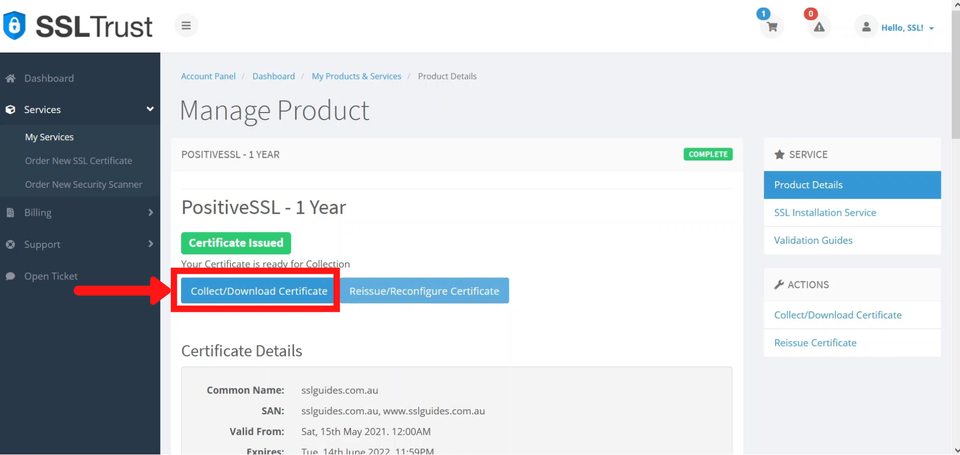

download ssl

2: Go to the first column and click on copy to clipboard

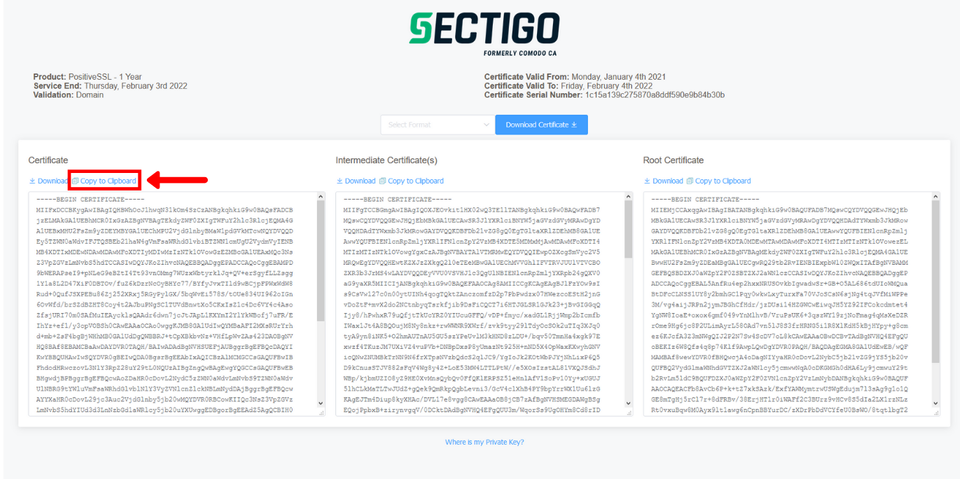

Copy SSL Certificate

3: Open your SSH Client and type in the following command

sudo nano /etc/encryption/certificate.crt

Paste in your certificate while saving the buffer and click on exit (CTRL+X).
The above command enabled you to save your certificate to the encryption directory.

4: Head over to the certificate collection page and click on copy to clipboard on the Intermediate certificate.

Note:- It is recommended that you install your intermediate certificate too so as improve compatibility with browsers; and to minimize the chances of your visitors getting unwanted security warnings on your website.

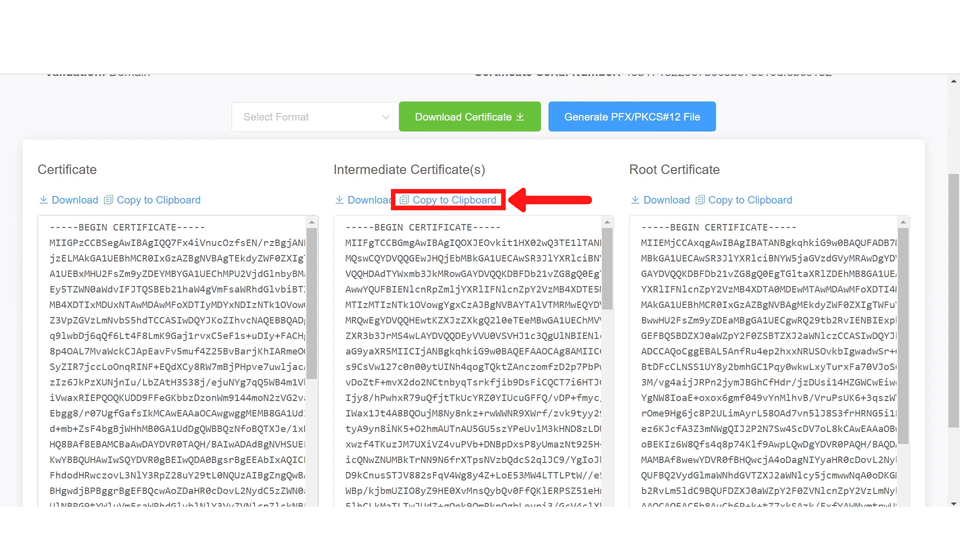

Copy Intermediate Certificate

5: Type in the following command and paste your intermediate certificate.

sudo nano /etc/encryption/intermediate.crt

Save the buffer and exit by pressing CTRL+X
After having uploaded the certificate files to your server, it is now time to configure Apache SSL Parameters



Step 4. Configure the Apache SSL Parameters

1: Let's create an SSL Parameters file and edit it

sudo nano /etc/apache2/conf-available/ssl-params.conf

2: Copy and paste the following set of directives:

SSLCipherSuite EECDH+AESGCM:EDH+AESGCM:AES256+EECDH:AES256+EDH
SSLProtocol All -SSLv2 -SSLv3 -TLSv1 -TLSv1.1
SSLHonorCipherOrder On
# Disable preloading HSTS for now.  You can use the commented out header line that includes
# the "preload" directive if you understand the implications.
# Header always set Strict-Transport-Security "max-age=63072000; includeSubDomains; preload"
Header always set X-Frame-Options DENY
Header always set X-Content-Type-Options nosniff
# Requires Apache >= 2.4
SSLCompression off
SSLUseStapling on
SSLStaplingCache "shmcb:logs/stapling-cache(150000)"
# Requires Apache >= 2.4.11
SSLSessionTickets Off

Save and exit the buffer.



Step 5. Configure the Apache Virtual Host


1: Create a backup of the respective default virtualhost configuration; This will make sure that Apache can revert to the older configuration incase of any syntax errors.
sudo cp /etc/apache2/sites-available/default-ssl.conf /etc/apache2/sites-available/default-ssl.conf.bak
2: Proceed to the edit the default Apache Virtual Host Configuration
sudo nano /etc/apache2/sites-available/default-ssl.conf
Provide the proper directory and configuration name incase your have multiple virtual hosts on your server. This is for the default Virtual Host.3: Make sure the configuration matches with the format below. Replace yourdomain.com with your domain name and make sure to provide the correct paths for both the certificates and the private key.
<IfModule mod_ssl.c>
  <VirtualHost _default_:443>
    ServerAdmin youremail.com
    DocumentRoot /var/www/html
    ServerName yourdomain.com
    ServerAlias www.yourdomain.com

    ErrorLog ${APACHE_LOG_DIR}/error.log
    CustomLog ${APACHE_LOG_DIR}/access.log combined

    SSLEngine on

    SSLCertificateFile path-to-certificate.crt
    SSLCertificateKeyFile path-to-private-key.key
    SSLCertificateChainFile path-to-intermediate-cert.crt

    <FilesMatch "\.(cgi|shtml|phtml|php)$">
      SSLOptions +StdEnvVars
    </FilesMatch>
    <Directory /usr/lib/cgi-bin>
      SSLOptions +StdEnvVars
    </Directory>
  </VirtualHost>
</IfModule>


Optional: Redirect HTTP to HTTPS

sudo nano /etc/apache2/sites-available/000-default.conf
replace the path if you have multiple virtual hosts set up.
<VirtualHost *:80>
  ServerAdmin youremail.com
  DocumentRoot /var/www/html
  ServerName yourdomain.com
  ServerAlias www.yourdomain.com
  Redirect "/" "https://your_domain_or_IP/"
</VirtualHost>



Step 6. Update the Firewall Settings

1: Check the applications enabled by the Firewall
sudo ufw app list
2: It is recommended that you have your firewall enabled and make sure to allow port 443 or type in the following command:
sudo ufw allow in "Apache Full"
This will allow both HTTP and HTTPS ports to allow incoming traffic.


Step 7. Check the SSL is working

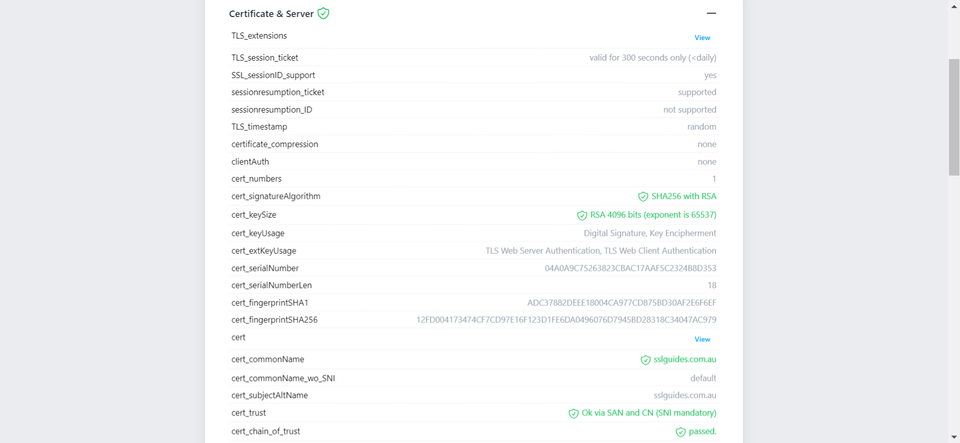

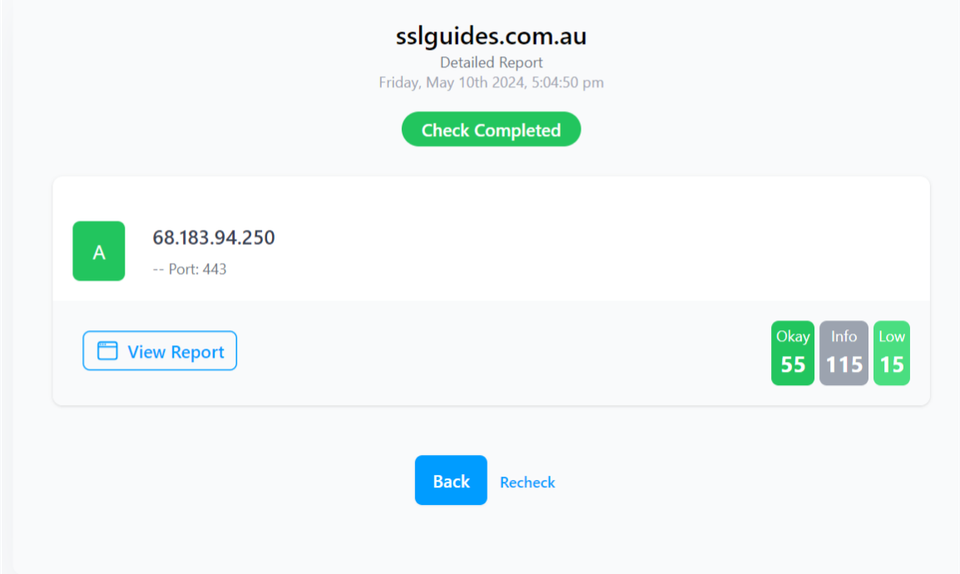

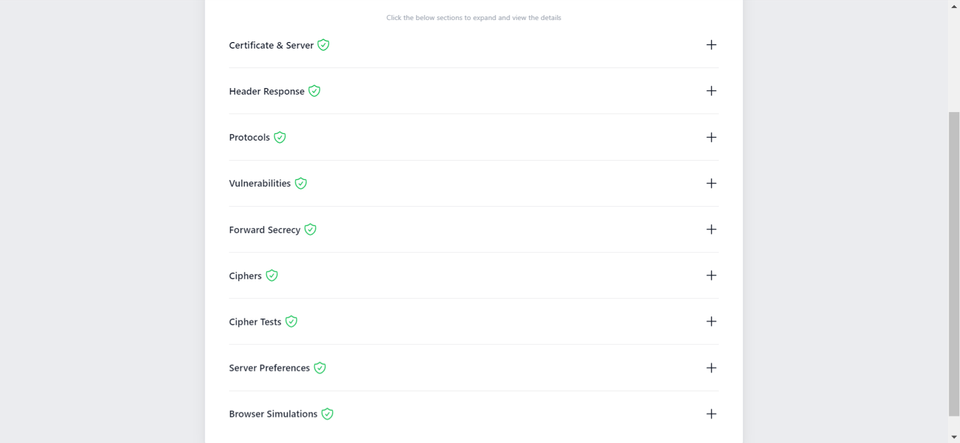

It is a good idea to go to your website and see if it works via https://www.yourdomain.com We also recommend you use this tool to check the install has been completed successfully: www.ssllabs.com/ssltest/
A2 Hosting SSLLabs A RatingYou may need to get your web developer, or update your website yourself, to make sure all files use https:// and all links to your site and within your website use https:// If you require any assistance with your SSL Installation please contact our friendly support team.
